Bathymetric Surveying

hydrographic survey hydrosurveyor hypack

Who says you can't have the best of both worlds? Now, both the CastAway-CTD and SonTek HydroSurveyor-M9 systems are integrated with HYPACK 2016 hydrographic surveying software. What does this mean for you?

Simple and Fast. Water sound speed corrections are interpolated in both space and time with the fully integrated CastAway-CTD and HYPACK, delivering
agility and accuracy to your surveys. Bluetooth communication integrated - no cables required!

Versatility. Survey under and around bridges with two available position references – GPS and bottom track (speed over ground) with HydroSurveyor-M9.

Flexibility. Complete, compact package for measuring bathymetry and correcting sound speed from a vessel of any size.

Features include:

Sound speed integration and interpolation (with CastAway-CTD)
Speed over ground (acoustic bottom tracking)
5-beam depth soundings (50° swath) with HydroSurveyor-M9 and HYPACK® Max
Water column velocity mapping
Automatic data gridding and interpolation
360° compass and two-axis tilt sensor
Interface for customer-supplied GPS and/or heading sensor
Updating copy on a page to publish to check out everything going on with the site currently.

SonTek Products

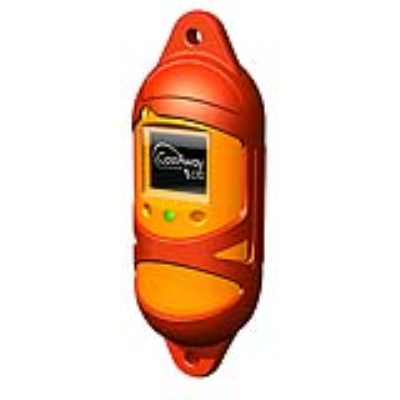

CastAway-CTD

The First Handheld Castable Instrument That Provides Instantaneous Profiles of Temperature, Salinity, and Sound Speed

The CastAway-CTD is a lightweight, easy-to-use instrument designed for quick and accurate conductivity, temperature, and depth profiles. Each cast is automatically referenced with both time and location using its built-in GPS receiver. The CastAway software displays profiles of the casts in addition to mapping the locations of the data collection points. Data integrate directly with RiverSurveyor Live and HYPACK software, and can also be exported to MATLAB for applying sound speed corrections.

The rugged, non-corrosive housing, AA battery power, and computer-free operation reflect the technician-friendly pedigree of the CastAway-CTD.

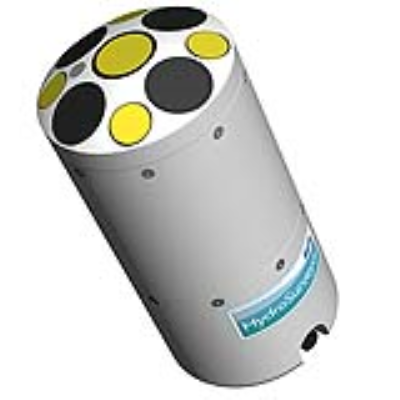

HydroSurveyor

Exclusive 5-Beam depth Sounding Device

The HydroSurveyor is a system designed to collect bathymetric, water column velocity profile, and acoustic bottom tracking data as part of a hydrographic survey. The two key components of the system are the HydroSurveyor Acoustic Doppler Profiler (ADP) platform, and the powerful, yet user-friendly, data collection software. With the HydroSurveyor platform, SonTek is able to offer an exclusive 5-beam depth sounding device, with built-in navigation, full water column velocity (currents) profiling, full compensation for speed of sound (with the CastAway-CTD), and an integrated positioning solution.
