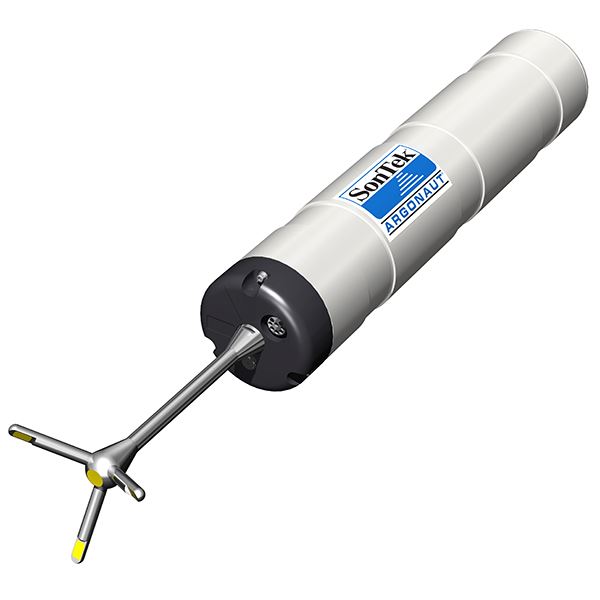

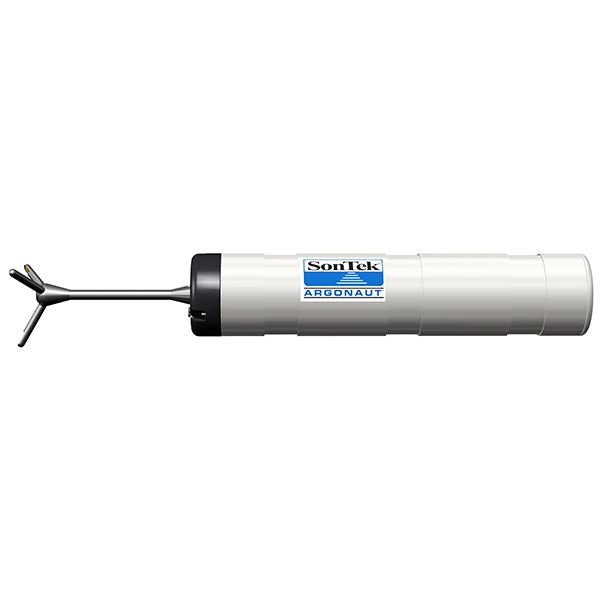

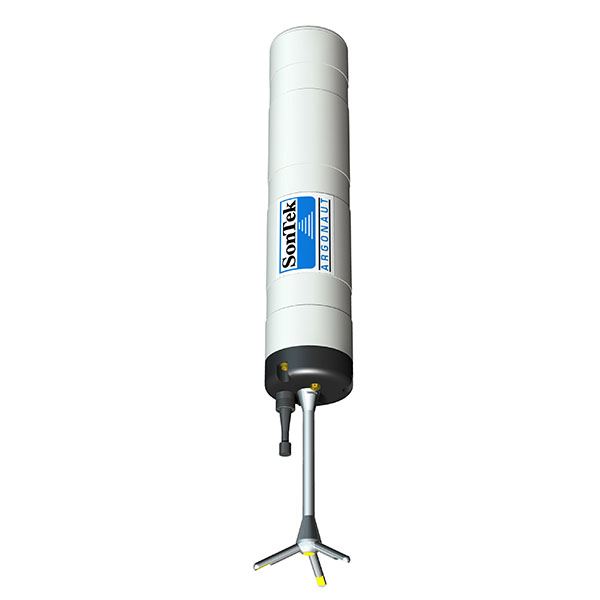

Argonaut-ADV

Providing robust velocity measurements in a compact, easy-to-use package, the SonTek Argonaut-ADV is the ultimate instrument for shallow water flow monitoring. Ideal for low-flow applications in shallow streams, marshes, lakes, or water treatment facilities, the 3-axis (3D) Argonaut-ADV's advanced Doppler technology measures single-point velocity away from flow obstructions. All signal processing is done internally, allowing the Argonaut-ADV to be readily integrated with a wide range of additional sensors.

• Overview

  STANDARD FEATURES

  • Fixed sampling volume of 0.25cc located 10 cm from transducer
  • 3-D down-looking 10 MHz ADV probe on 15 cm stem
  • RS232 and SDI-12 communication protocols
  • Flexible sampling strategies for reduced duty cycle operation and extended deployments
  • 4 MB internal memory (over 100,000 samples)
  • Acoustic altimeter
  • Compass/tilt sensor
  • Internal battery pack
  • Temperature sensor for automatic sound speed compensation

  OPTIONAL FEATURES

  • 2-D side-looking ADV probe
  • Integrated pressure sensor for water level measurement
  • RS422 output
  • High capacity external battery

• Specifications

  Specifications
  Velocity — Data Output Rate	User-programmable
  Velocity — Range	±0.001 - 4.5 m/s (±0.003 to 15 ft/s)
  Velocity — Resolution	0.0001 m/s
  Velocity — Accuracy	±1% of measured velocity, ±0.001 m/s
  Weight in air	3.18 kg (7 lbs)
  Weight in water	0.45 kg (1 lb)
  Pressure Rating	60 m
  3-D Probe Circumference	130 mm (5.1 in)
  2-D Probe Circumference	147 mm (5.8 in)
  Temperature Sensor — Resolution	0.01°C
  Temperature Sensor — Accuracy	±0.1°C
  Operating Temperature	-5° to 40°C
  Storage Temperature	-10° to 50°C
  Pressure Sensor Strain Gauge — Accuracy	0.1%
  Input Power	7-15 VDC
  Typical Power Consumption	0.2 to 0.5 W, continuous operation
  Ambient Humidity Range	<90% RH

• Accessories



  SonTek Power Supply

  Power supply, 15VDC, 40W



  SonTek Power Cord (U.S.)

  Power cord (U.S.)



  SonTek Power Cord Kit (International)

  Power cord kit (International)

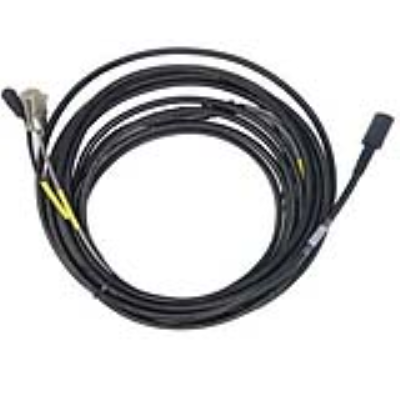

  Argonaut-ADV Power and Communications Cable

  Power and Communications Cable

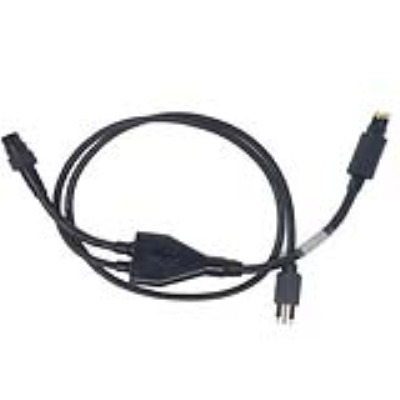

  Argonaut-ADV Splitter Cable

  Splitter Cable



  SonTek Connector

  Connector



  SonTek Locking Sleeve

  Locking Sleeve

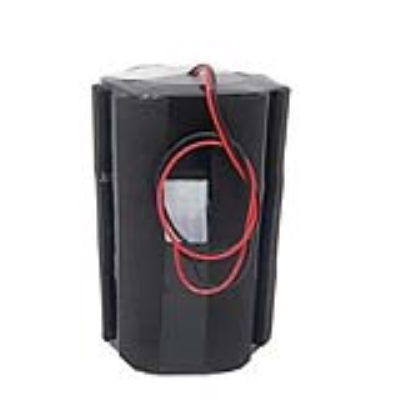

  Argonaut-ADV Battery Pack

  Battery Pack

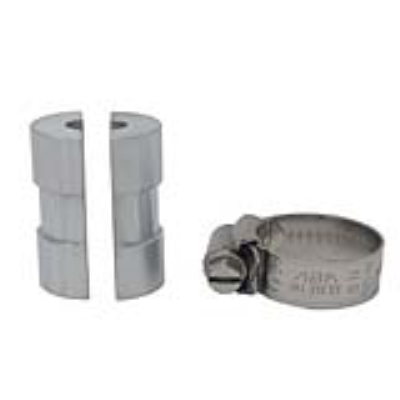

  Argonaut-ADV Zinc Anode with Hardware

  Zinc Anode with Hardware

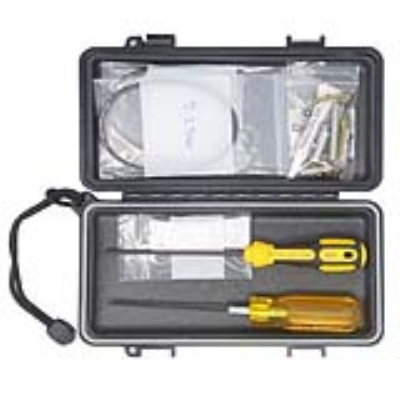

  Argonaut-ADV Tool Kit

  Tool Kit
