Satellite Transmitter

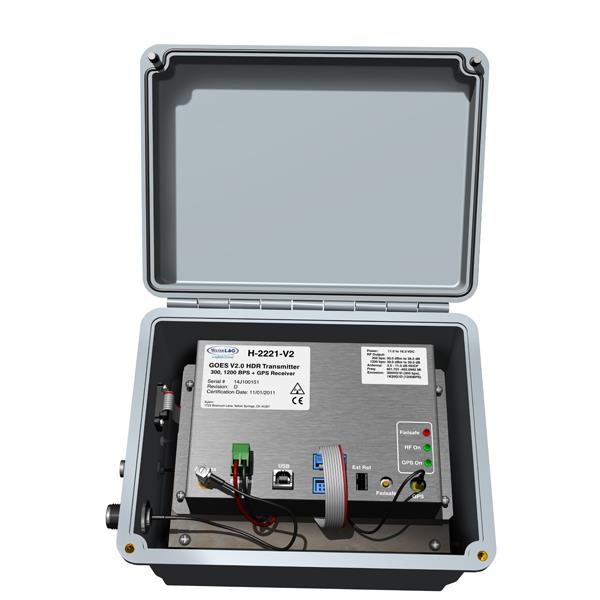

WaterLOG Satellite Transmitter, internal GPS, GPS Antenna & Cable

• Overview

  If you are experiencing an issue with your GOES transmitter, please check out the GOES Support Page

  The WaterLOG Certified GOES Transmitter (H-2221-V2) is a rugged instrument approved for self-timed and random transmissions in Binary, ASCII or Pseudo-binary data formats. The compact system contains a built-in GPS receiver and allows adjustable transmit power to attain high data accuracy. The instrument operation is based on version 2.0 of the DCPRS certification standard to ensure reliable performance.

  Other Features Include:

  • Supports 300 and 1200 BPS
  • Low standby power (6mA typ)
  • Three status LEDs
  • Operates up to one month without a GPS time sync
  • Menu driven setup interface
  • Programmable power output
  • Two RS-232 ports

• Specifications

  Connectivity / Communications	GOES Antenna, GPS Antenna, Power Connector, Power Plug, USB, RS-232
  Operating Temperature	-40 ° to +60 ° C
  Power	Power requirements: Voltage Input 11.0 to 16.0V (12V nominal); Current: Standby: 6 mA typ (GPS off), Standby: 33 mA typ (GPS on) Active: 3.0A typ
  Storage Temperature	-40 ° to +85 ° C
  Warranty	2 years
