IQ SensorNet Cleaner Head Module

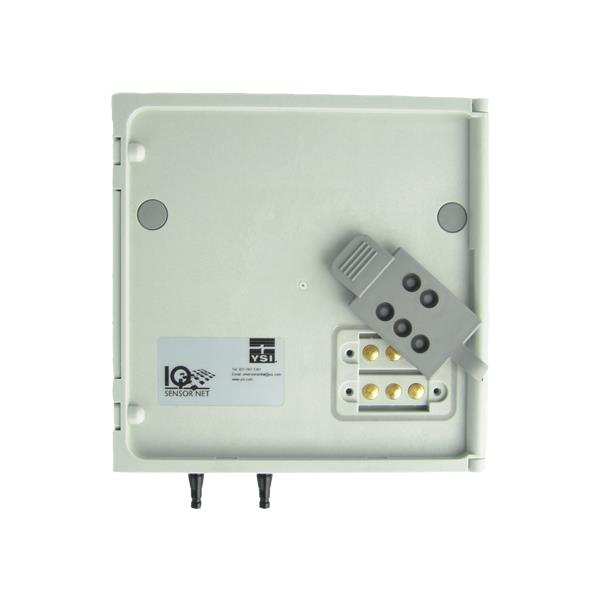

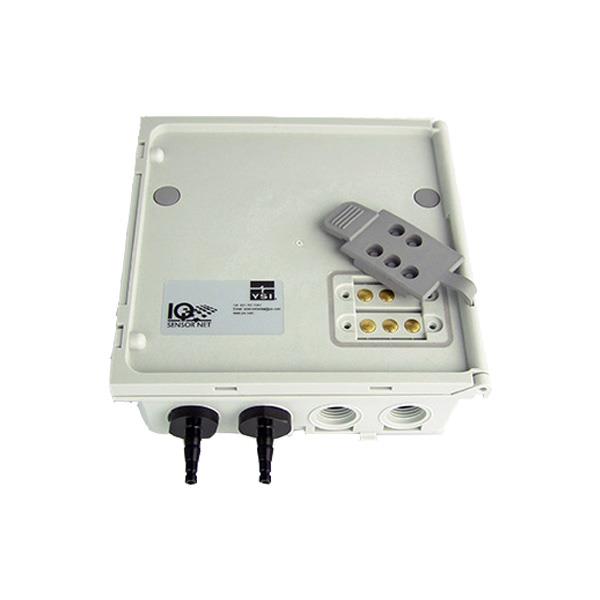

The MIQ/CHV PLUS module is a magnetic valve module for automatic controlled cleaning via compressed air

• Overview

  The MIQ/CHV PLUS module is a magnetic valve module for automatic controlled cleaning via compressed air for 2020 XT.

  Power consumption is 1 watt.

  Number of occupied output channels is 1.

  48 output channels are available in the system.

• Specifications

  Certifications	Rating: IP-66, equivalent to NEMA 4X (not suitable for conduit connection
  Equipment used with	282/284 and 2020 XT
  Integrated Lightning Protection	Yes
  Languages	German, English
  Operating Temperature	-4 to 131 °F (-20 to 55 °C)
  Power	Directly via the IQ SensorNet
  Smart Sensors / Ports	Yes
  Storage Temperature	-13 to 149 °F (-25 to 65 °C)
  Warranty	Enclosure: 3 years
