3200 Series Conductivity Cells

Conductivity cell made of ABS plastic or glass cell with temperature and 4 ft. cable.  Please see the specifications tab for additional information.

• Overview

  YSI 3200 series conductivity cells have built-in thermistors, allowing automatic temperature compensation.  All YSI cells are calibrated according to the International Organization of Legal Metrology recommendations 56 and 68.

  • Shipped with greater than 1% cell accuracy; includes Certificate of Traceability
  • Can be used as secondary lab standard
  • Cells can be re-calibrated (adjusted) to NIST traceable standards; YSI also offers this service with a Certificate of Calibration and Traceability if needed
  • Black platinum electrodes are extremely stable and linear; can be replatinized using the YSI 3100 or 3200 instruments and 3140 platinizing solution

• Specifications

  Equipment used with	3200, 3100

  Conductivity Cell General Measurement Ranges



  3200 Series Conductivity Cell Types



  3200 Series Conductivity Cell General Specifications

  SKU	Figure	cgs Cell Type	S.I. Cell Constant	Cell Constant	Material	Overall Length (mm)	Max O.D. (mm)	Chamber I.D. (mm)	Chamber Depth (mm)	Volume

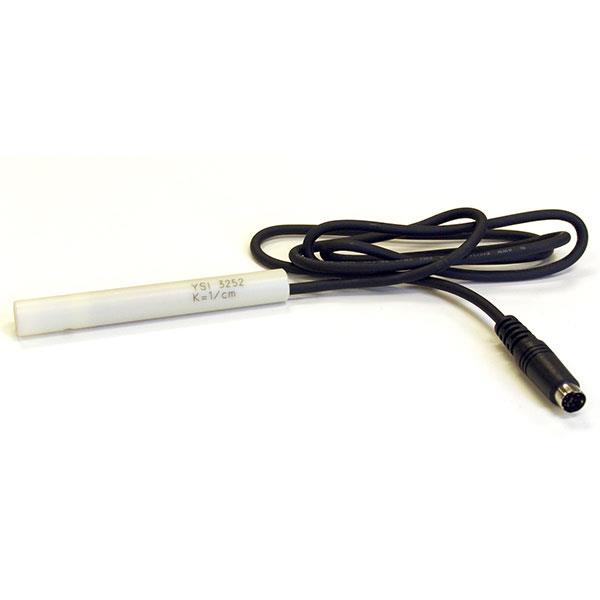

  003252	A	dip	1.0/cm	100/m	ABS plastic	146	13	10	20

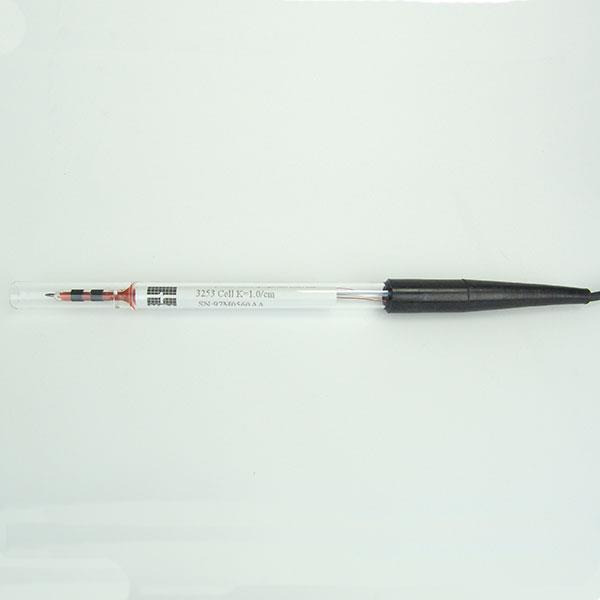

  603253	D	dip, micro	1.0/cm	100/m	Pyrex 7740	178	13	10	51

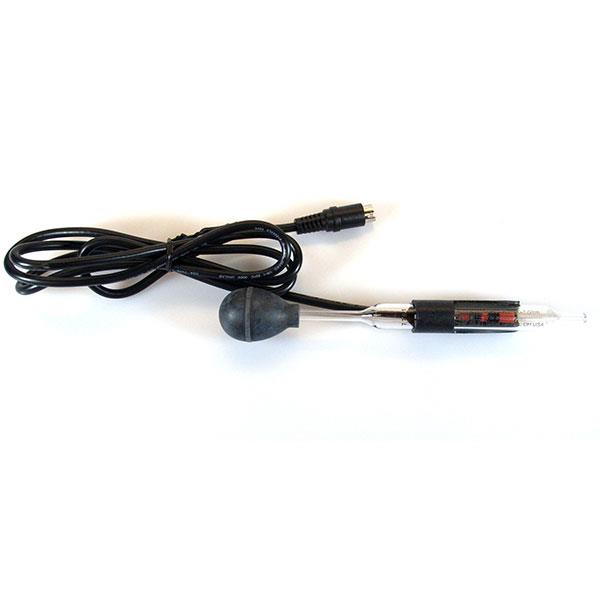

  603254	C	fill	1.0/cm	100/m	Pyrex 7740	135	19	11	83	5 mL
  603255	B	flow	0.1/cm	10/m	Pyrex 7740	146	25	21	76	30 mL

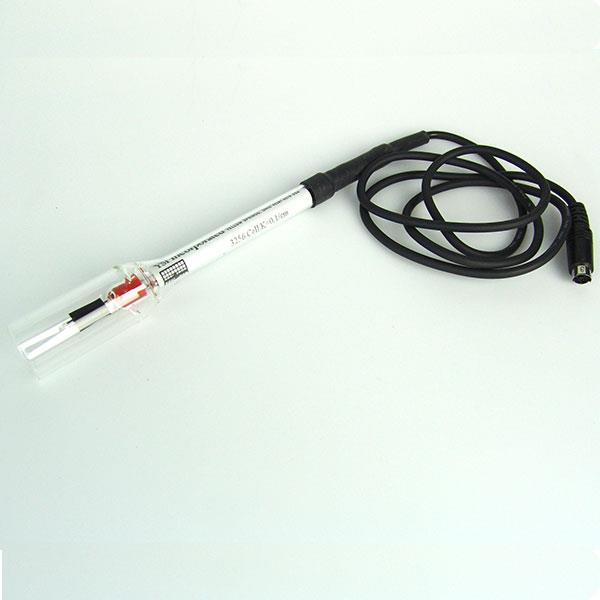

  603256	E	dip	0.1/cm	10/m	Pyrex 7740	159	25	21	52
