3400 Series Conductivity Cells

Conductivity cell made of ABS plastic or glass cell.

• Overview

  Used with the 3100 and 3200 conductivity benchtop instruments. Requires 3232 cell adaptor if used with 3100 or 3200 conductivity instruments.

• Specifications

  Equipment used with	3100, 3200, 34, 35, 32, 32FL

  Conductivity Cell General Measurement Ranges



  3400 Conductivity Cell Types



  3400 Series Conductivity Cell General Specifications*

  SKU	Model	Figure	cgs Cell Type	S.I. Cell Constant	Cell Constant	Material	Overall Length (mm)	Max O.D. (mm)	Chamber I.D. (mm)	Chamber Depth (mm)

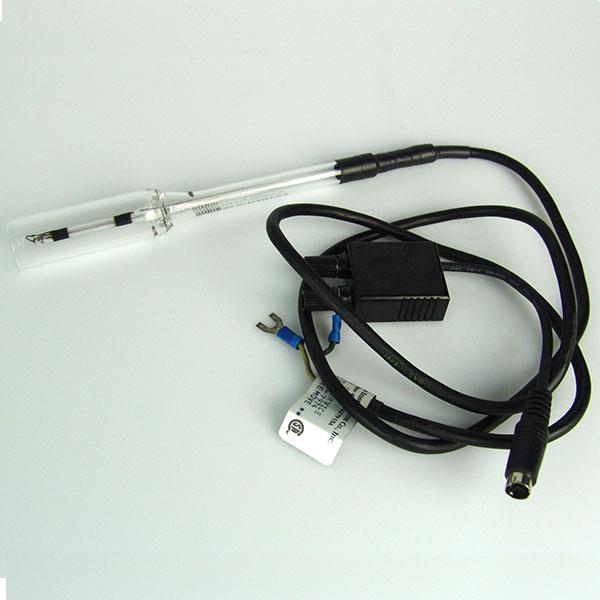

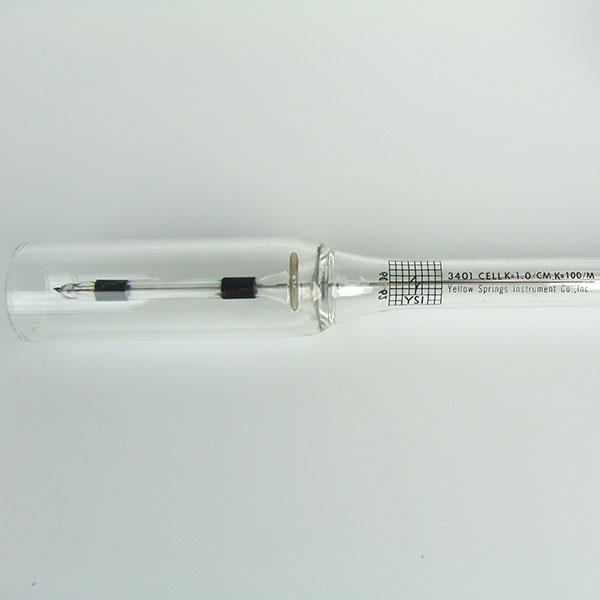

  603401	3401	A	dip	1.0/cm	100/m	Pyrex 7740	191	25	21	76

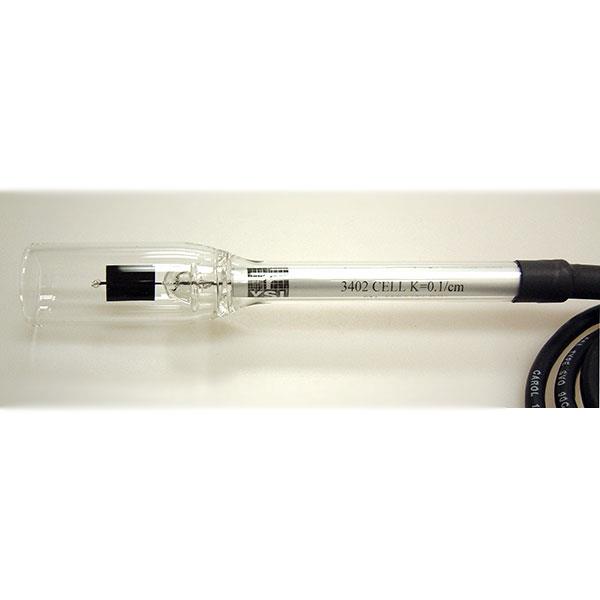

  603402	3402	B	dip	0.1/cm	10/m	Pyrex 7740	159	25	21	52

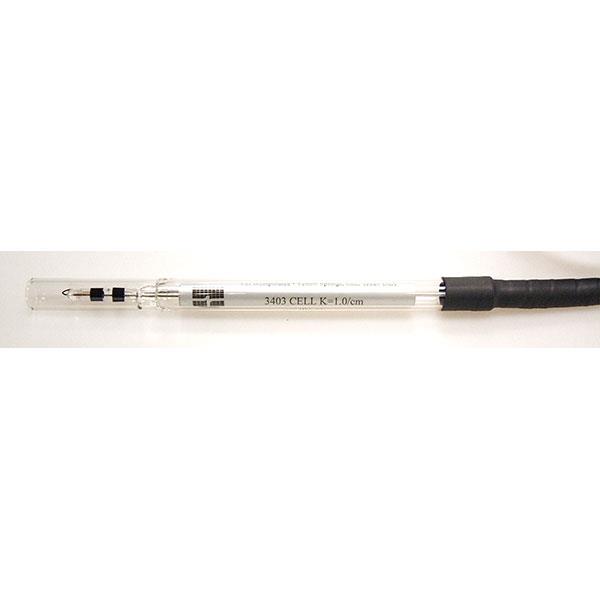

  603403	3403	C	dip	1.0/cm	100/m	Pyrex 7740	178	13	10	51
  099820	3417	D	dip	1.0/cm	100/m	ABS plastic	146	13	10	20

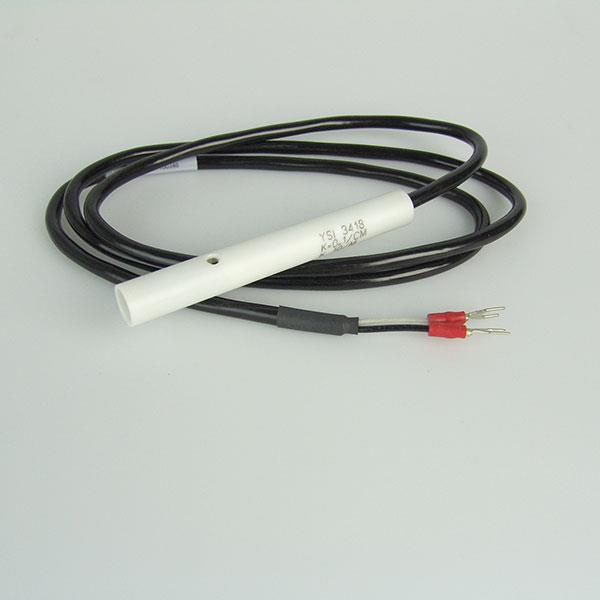

  099821	3418	D	dip	0.1/cm	10/m	ABS plastic	159	13	10	30

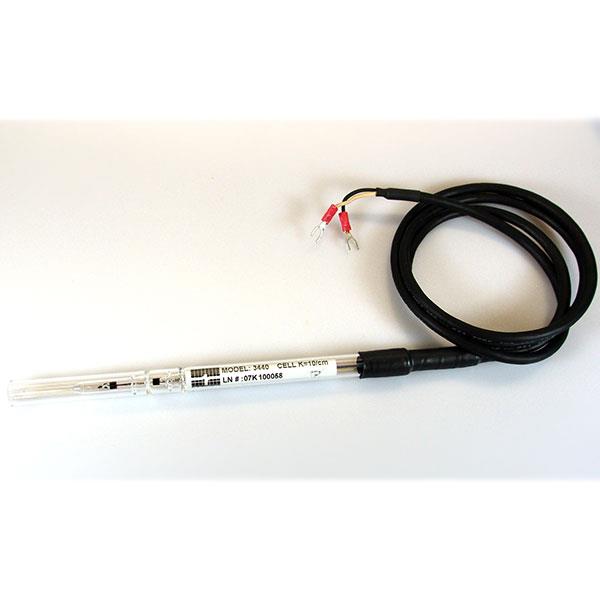

  603440	3440	E	dip	10/cm	1000/m	Pyrex 7740	203	13	2	86

  *Requires a YSI 3232 Cell Adaptor for use with YSI 3100 and 3200 Conductivity Instruments. For automatic temperature compensation, use a YSI 3220 on the 3200
