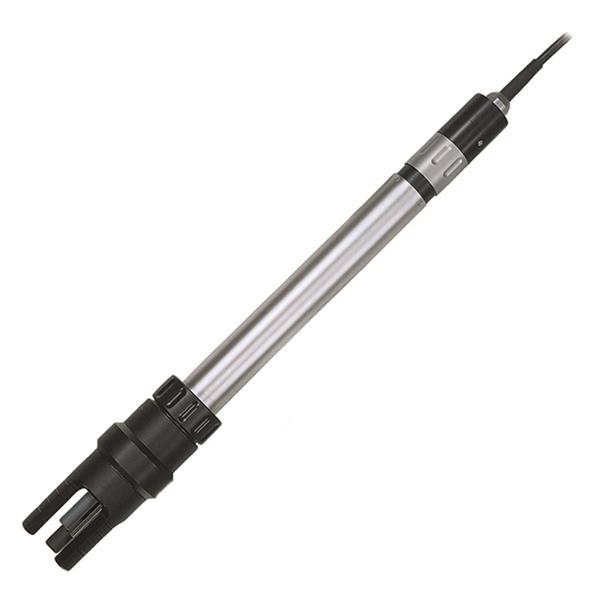

IQ SensorNet AmmoLyt® Plus Sensors

Ammonium and Potassium probe for IQ SensorNet system

• Overview

  The AmmoLyt® is a rugged, ion selective electrode (ISE) probe for the IQ SensorNet process monitoring system. The AmmoLyt provides continuous and reagentless monitoring of ammonium and potassium using the most precise and reliable electrodes on the market. The individually replaceable electrodes have a typical lifetime of 18 to 24 months and are warrantied for 1 year minimizing maintenance effort and ownership cost.

  The AmmoLyt is a good choice for nitrification monitoring and advanced process control of activated sludge aeration to achieve the lowest energy usage.

  • Measurement and display of ammonium and potassium
  • Dynamic compensation of ammonium measurement for potassium
  • Measuring range up to 2,000 mg NH₄-N/L; 1,000 mg K/L
  • Individually user-replaceable measuring and reference electrodes
  • AmmoLyt® reference system is very stable over long periods of time
  • Digital probe recognizes electrodes automatically
  • Simple in-situ calibration
  • Integrated NTC temperature sensor for temperature compensation
  • 2-year warranty on the probe, 1-year on electrodes

• Specifications

  Depth / Pressure Rating / Limit	with installed electrodes), Maximum 0.2 bar (incl. SACIQ sensor connection cable
  Equipment used with	282/284 and 2020 XT
  Integrated Lightning Protection	Yes
  Languages	German, English
  Measurement Method / Channels	Continuous potassium or chloride compensation
  Measurement Range	NH4-N: 1 to 1000 mg/l / 1 mg/l; 0.1 to 100 mg/l / 0.1 mg/l and NH4 +: 1 to 1290 mg/l / 1 mg/l; 0.1 to 129.0 mg/l / 0.1 mg/l
  Operating pH Range	4 – 8.5
  Operating Temperature	32 – 104 °F (0 – +40 °C)
  Parameters Measured	Ammonium
  Precision	±5% of measured value ± 0.2 mg/l in standard solutions
  Response Time	T95 <20 seconds
  Sampling	Yes
  Smart Sensors / Ports	Yes
  Storage Temperature	32 to 104°F (0 to 40°C)
  Unit of Measure	mg/L
  User Calibratable	not recommended
  User Replaceable	Yes
  Warranty	2 years / Electrodes: 1 year
  Waterproof	with installed electrodes), IP 68 (0.2 bar

• Accessories



  VARiON Plus K Electrode

  Potassium compensating electrode for VARiON Plus and AmmoLyt Plus 700 IQ probes



  VARiON Plus NH4 Electrode

  Ammonium measuring electrode for VARiON Plus and AmmoLyt Plus 700 IQ probes



  VARiON, NitraLyt, and AmmoLyt Reference Electrode

  IQ SensorNet Reference Electrode
