IQ SensorNet NiCaVis Sensors

YSI IQ SensorNet UVVIS Ultrasonic Cleaning with UltraClean Technology

The ultrasonic cleaning of the UVVIS IQ SensorNet sensors. This short video demonstrates the ultrasonic cleaning when power is added to this sensor and the milky substance is quickly cleaned off. The UltraClean technology is continuously on and built into the sensor to prevent fouling.

PriceRequest Pricing

Option

SKU481 054YM

Request a Quote

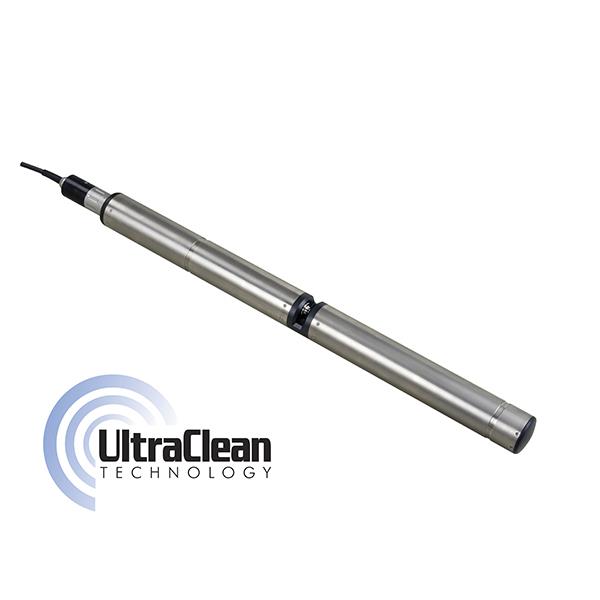

Optical probe for measuring COD, BOD, Nitrate, Nitrite, UVT-254, TOC, DOC, SAC-254, and TSS for IQ SensorNet systems

Overview

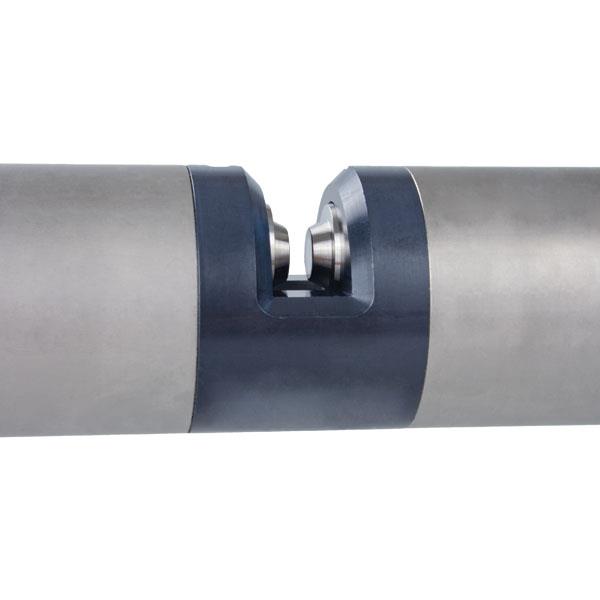

The NiCaVis is a reagentless, optical-based spectrophotometer built into a rugged, corrosion-resistant field probe for the IQ SensorNet system. The NiCaVis can report up to 5 parameters including: Nitrate, Nitrite (optional), COD (total and soluble), BOD, UVT-254, TOC, DOC and SAC (total and soluble). The NiCaVis probe scans 256 wavelengths per measurement to provide the most accurate data with precise compensation for interferences such as turbidity on the UV-VIS probe. The NiCaVis provides continuous data to help with operational improvement decisions. The probe’s built-in UltraClean® ultrasonic cleaning technology reduces routine maintenance requirements.
- Nitrite UV probe measures 256 wavelengths between 200 and 390 nm allowing it to differentiate between nitrate and nitrite; UV-VIS measures between 200 and 720 nm
- 256 wavelength scans per measurement results in better accuracy and better compensation for interferences
- UVT-254 measurement used to determine required UV light intensity and contact time for disinfection, lowering a facility’s disinfection costs
- Factory calibrated with optional user-calibration
- 2-year warranty
- Reduced maintenance with UltraClean ultrasonic cleaning technology; prevents biofouling from taking place. Built-in air holes for added air cleaning in high fouling applications.

Specifications

Anti Fouling	UltraClean™ ultrasound cleaning system
Certifications	CE, cETLus
Depth / Pressure Rating / Limit	maximum immersion depth = 10 meters, 1 bar (14.5 psi)
Equipment used with	282/284 and 2020 XT
Integrated Lightning Protection	Yes
Languages	English/ German
Measurement Method / Channels	200-720 nm., Measuring over total spectrum from ultraviolet (UV) to visible (VIS) light
Measurement Range	NO2: 0.0 to 120.0 mg/L (influent/aeration); 0.0 to 300.0 mg/L (effluent); NO2-N: 0.00 to 30.00 mg/L (influent/aeration); 0.00 to 75.00 mg/L (effluent); NO3: 0.0 to 300.0 mg/L (influent/aeration); 0.0 to 750.0 mg/L (effluent); NO3-N: 0.00 to 60.00 mg/L (influent/aeration); 0.0 to 150.0 mg/L (effluent); COD (total): 0 to 20,000 mg/L (influent); 0 to 4,000 mg/L (effluent); COD (soluble): 0 to 12,500 mg/L (influent/aeration); 0 to 4,000 mg/L (effluent); TOC: 0 to 20,000 mg/L (influent); 0 to 2,500 mg/L (effluent); DOC: 0 to 12,500 mg/L (influent/aeration); 0 to 2,500 mg/L (effluent); BOD: 0 to 8,000 mg/L (influent); 0 to 2,500 mg/L (effluent); SAC 254 (total): 0 to 5,000 1/m (influent/aeration); 0 to 3,000 1/m (effluent); SAC 254 (soluble): 0 to 3,000 1/m (influent/aeration/effluent) ; UVT-254: 0.0 to 100.0 % (influent/aeration/effluent)
Operating pH Range	4 to 12
Operating Temperature	32 to 113 °F (0 to 45 °C)
Parameters Measured	Nitrate, Nitrite (optional), COD (total and soluble), UVT-254, TOC, DOC, BOD, SAC 254 (total and soluble)
Precision	(+/-)3% of the measured value (+/-) 2.5 mg/L
Sampling	Yes
Smart Sensors / Ports	Yes
Storage Temperature	14 to 122 °F (-10 to 50 °C)
Unit of Measure	mg/L, 1/m
Warranty	2 years
Waterproof	Sensor with SACIQ cable connected: IP68
