IQ SensorNet NitraLyt® Plus Sensors

Nitrate and Chloride probe for IQ SensorNet systems

• Overview

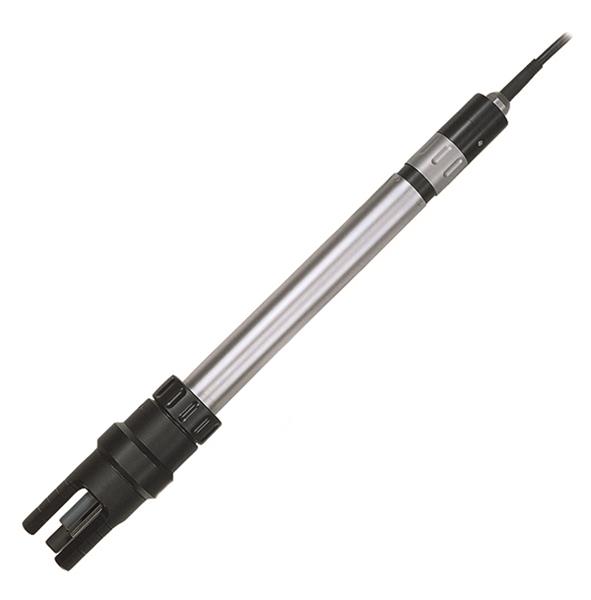

  The NitraLyt® is a rugged ion selective electrode (ISE) probe for the IQ SensorNet process monitoring system. The NitraLyt provides continuous and reagentless monitoring of Nitrate and Chloride, the most precise and reliable electrodes on the market. The individually replaceable electrodes have a typical lifetime of 18 to 24 months and are warrantied for 1 year, minimizing maintenance efforts and ownership costs. The NitraLyt is a good choice for monitoring denitrification process control of mixed liquor recirculation and external carbon dosing.

  • Measurement and display of nitrate and chloride
  • Dynamic compensation of nitrate measurement for chloride
  • Measuring range up to 1,000 mg NO₃-N/L; 1,000 mg Cl/L
  • Individually, user-replaceable measuring and reference electrodes
  • NitraLyt® reference system is very stable over long periods of time
  • Digital probe recognizes electrodes automatically
  • Simple in-situ calibration
  • Integrated NTC temperature sensor for temperature compensation
  • 2-year warranty on the probe, 1-year on electrodes

• Specifications

  Depth / Pressure Rating / Limit	0.2 bar (2.9 psi) depth of immersion: min. 50 mm, max. 2 m depth
  Equipment used with	282/284 and 2020 XT
  Integrated Lightning Protection	Yes
  Languages	English/ German
  Measurement Method / Channels	screened 2-wire connection for power and data transmission., Potentiometric measurement by means of ion sensitive electrodes. Modular structure with jointly used reference electrode and ion sensitive electrodes. Integrated microprocessor electronics
  Measurement Range	NO3-N: 1 to 1000 mg/L or 0.1 to 100.0 mg/L NO3-: 5 to 4500 mg/L or 0.5 to 450.0 mg/L Cl-: 1 to 1000 mg/L
  Operating pH Range	4 to 11
  Operating Temperature	32 to 104°F (0 to 40°C)
  Parameters Measured	Nitrate
  Precision	Accuracy in lab standards +5% of measured value +0.2 mg/L in standard solutions
  Sampling	Yes
  Smart Sensors / Ports	Yes
  Storage Temperature	32 to 104°F (0 to 40°C)
  Unit of Measure	mg/L
  User Replaceable	Yes
  Warranty	2 years (typical working life is 18 months)
  Waterproof	IP-68

• Accessories



  VARiON Plus Cl Electrode

  Chloride compensating electrode for VARiON Plus and NitraLyt Plus 700 IQ probes



  VARiON Plus NO3 Electrode

  Nitrate measuring electrode for VARiON Plus, NitraLyt and NitraLyt Plus 700 IQ probes



  VARiON, NitraLyt, and AmmoLyt Reference Electrode

  IQ SensorNet Reference Electrode
