IQ SensorNet P700 IQ Orthophosphate Analyzer

*Note: The Alyza IQ PO4 analyzer has been released and is a direct replacement for the P700. There are a limited number of P700s available for new orders. Learn more about Alyza here.

The P700 for orthophosphate measurement can be used as a standalone analyzer or fully integrated into the IQ SensorNet continuous monitoring and control system.

• Overview

  Named Processing Magazine's Breakthrough Product of Year!

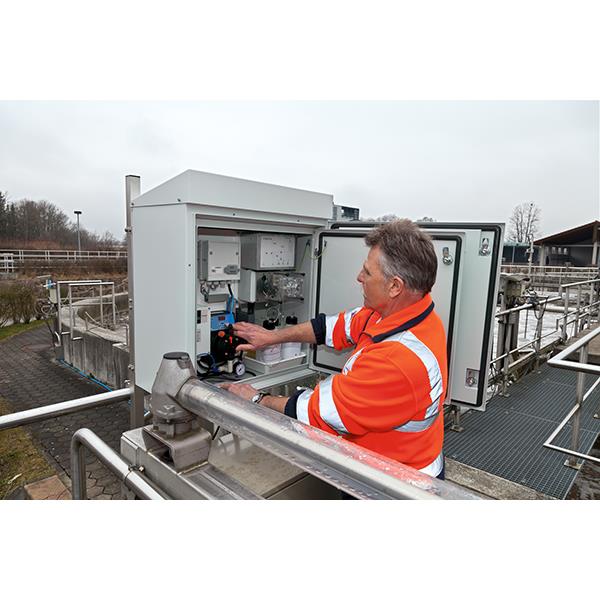

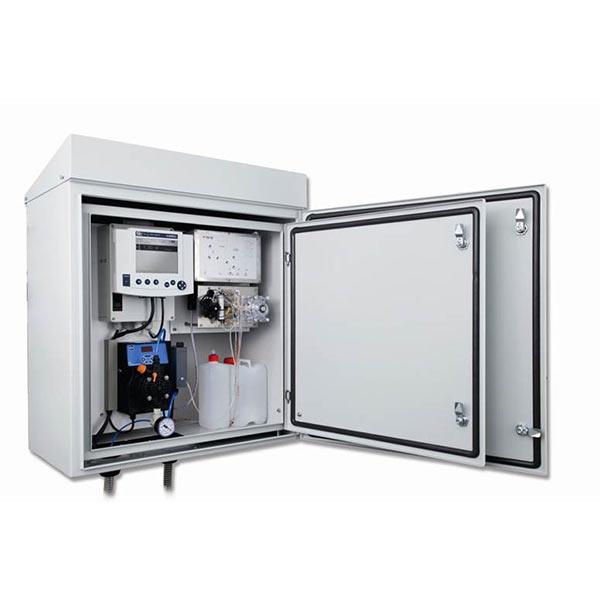

  The P700 is a cabinet-style analyzer for monitoring orthophosphate in a wide variety of wastewater applications from primary treatment through final effluent. The versatile system can process samples with solids concentrations of up to 6,000 mg/L in ambient temperatures as low as -4°F allowing measurement of orthophosphate where it is most needed for efficiently controlling phosphorus removal. The sampling system includes a lightweight 0.45 micron filter and a pump inside the analyzer cabinet. The analyzer is programmable for automatic cleaning and calibration to a standard. The P700 can be used as a stand-alone analyzer or be incorporated into a larger network with IQ SensorNet 2020 or 282/284 universal controllers.

  • Compact design - pump for permeate supply is integrated in the analyzer housing
  • Low reagent consumption - exchange solutions on average every 4-8 months, reduces overall cost vs. other analyzers
  • Automatic or manual calibration (adjustable)
  • Automatic cleaning of photometer tubing (adjustable)
  • Uses proven Vanadomolybdate (yellow) method of detection
  • Wide measuring range - two measuring ranges allow the P700 to be used in a wide range of locations throughout the Water Resource Recovery Facility
  • Indoor or outdoor versions available with heating or cooling

• Specifications

  Certifications	UL, CE, cETLus, IP54
  Connectivity / Communications	interfaces via IQ Sensor Net-components, Relays, analog outputs
  Equipment used with	IQ SensorNet 2020 XT
  Languages	English/ German
  Measurement Method / Channels	Vanadomolybdate (yellow)
  Measurement Range	PO4-P: Range A: 0.05 to 15.00 mg/L; Range B: 1 to 50 mg/L PO4: Range A: 0.15 to 46.00 mg/L; Range B: 3 to 153 mg/L
  Operating pH Range	5 to 9
  Operating Temperature	-20 to 40ºC (-4 to 104°F)
  Parameters Measured	Orthophosphate
  Power	115/230 VAC
  Precision	PO4P: Range A: 0.05 to 15.00 mg/L; Range B: 1 to 50 mg/L; PO4: Range A: ±2% or ±0.15 mg/L, whichever is greater; Range B: ±2% or ±3 mg/L, whichever is greater
  Response Time	T-90 < 5 minutes
  Storage Temperature	-20 to 50ºC (-4 to 122°F)
  Unit of Measure	mg/L
  User Calibratable	automatic or manual calibration (adjustable), Yes

• Accessories



  IQ SensorNet P700 Rail Mount

  RM, rail mount, P 700 IQ



  IQ SensorNet P700 Wall Mount

  WM, wall mount, P 700 IQ



  IQ SensorNet 2020 3G Controller

  Modular water quality system for a complete sensor network allows for connection of 20 sensors



  IQ SensorNet P700 Stand Mount

  SM, stand mount, P 700 IQ

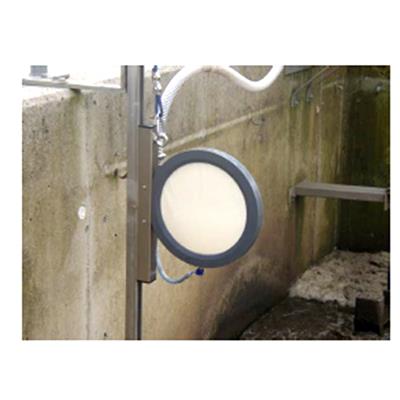

  IQ SensorNet P700 Filter Membrane Module with premounted membrane

  FM, filter membrane module with premounted membrane, P 700 IQ



  IQ SensorNet P700 Filter, set of 2 for FM/FM-Case Modules

  Filter, set of 2 filter membrane for FM/FM-Case modules, P 700 IQ



  IQ SensorNet P700 FM-Case for filter membrane

  FM-Case, module case for filter membrane, includes: module case without filter membranes, P 700 IQ



  IQ SensorNet P700 Standard Solution, 0.0 mg/L PO4-P

  ST 0.0, standard solution, 0.0 mg/L PO4-P, P 700 IQ, 1 L



  IQ SensorNet P700 Standard Solution, 1.6 mg/L PO4-P

  ST 1.6, standard solution, 1.6 mg/L PO4-P, P 700 IQ, 1 L



  IQ SensorNet P700 Standard Solution, 8.0 mg/L PO4-P

  ST 8.0, standard solution, 8.0 mg/L PO4-P, P 700 IQ, 1 L



  IQ SensorNet P700 Standard Solution, 20.0 mg/L PO4-P

  ST 20.0, standard solution, 20.0 mg/L, PO4-P, P 700 IQ, 1 L



  IQ SensorNet P700 Cleaning Solution

  CL 1.0, cleaning solution for P 700 IQ, 1 L (Pack Inst 851)



  IQ SensorNet P700 Reagent, 2.5L

  RE 2.5, reagent for P 700 IQ, 2.5 L (Pack Inst. 851)

• Video

  IQ SensorNet Video Playlist

  YSI IQ SensorNet modular, continuous water quality monitoring and control system

  YSI IQ SensorNet P700 Orthophosphate Analyzer | Overview

  Learn more about the IQ SensorNet P700 orthophosphate analyzer and how it can help monitor your biological phosphorus removal and control chemical dosing. The P700 measures the amount of orthophosphate throughout the wastewater treatment process - from primary settling to the biological tanks and effluent. The analyzer provides continuous data to help improve operational efficiency, lower operation costs as well as verification of phosphate elimination in order to meet permit requirements. A wide measurement range, low chemical use and built-in auto-calibration make the P700 ideal for continuous phosphorus monitoring.
