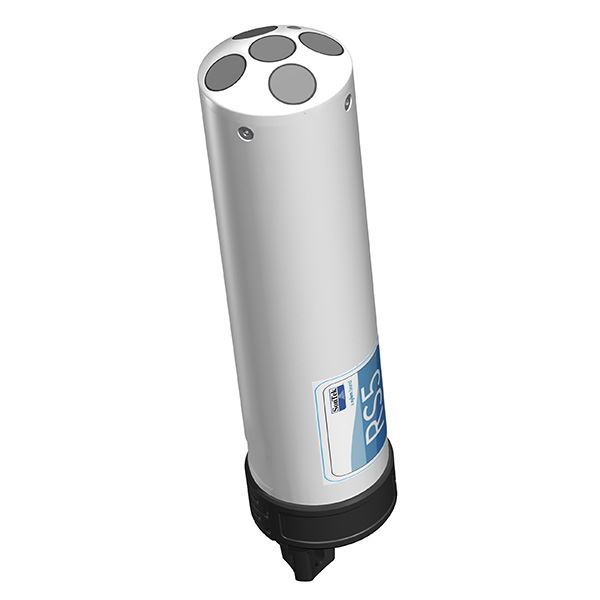

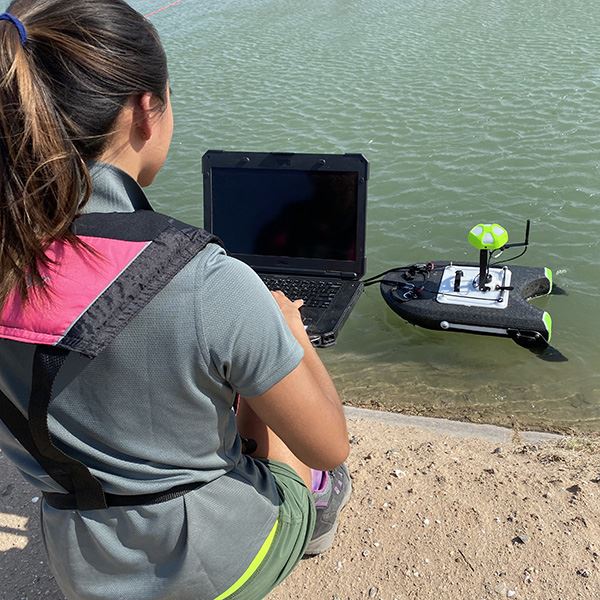

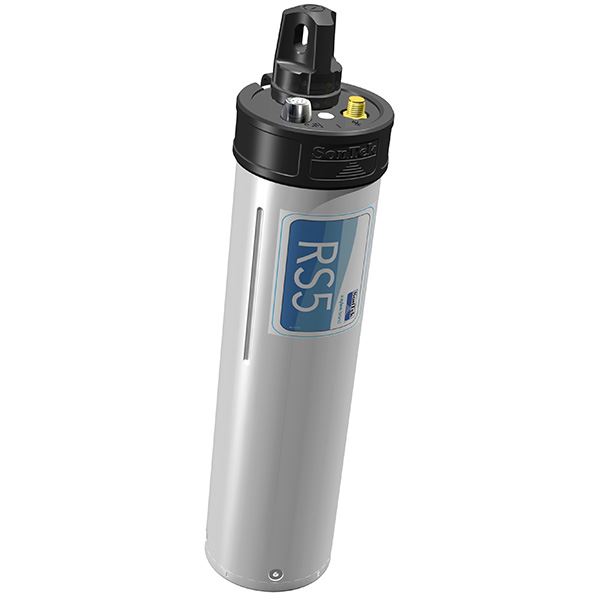

The RS5 is an acoustic doppler current profiling (ADCP) system that fits in the palm of your hand and includes everything you need to make a discharge measurement. Get the package that includes the HydroBoardII Micro and you’ll have everything you need for the fastest, high-quality measurement possible. It is the smallest and lightest complete ADCP solution for moving boat discharge measurement available.

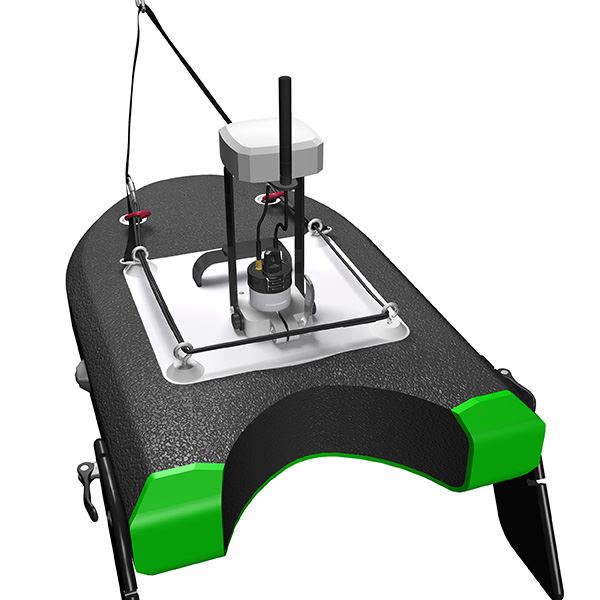

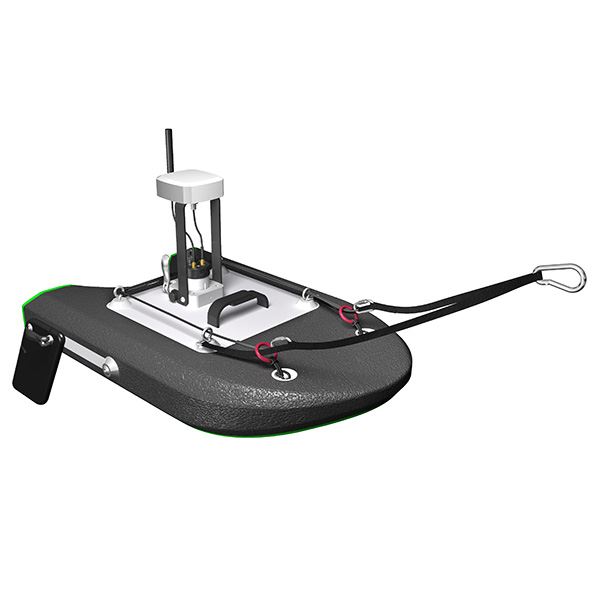

Simply fold the GNSS/antenna mast and pop the RS5 and board into the custom-designed backpack for easy transportation and minimal re-assembly between sites!

Overview
SONTEK RS5 RTK

This exciting new SonTek proprietary RTK solution uses custom-designed dual-frequency and multi-constellation GNSS antennas, with the option for a Rover and Base configuration, or a Rover antenna with NTRIP corrections. Other features include:
- Supports constellations and frequencies GPS(L1ca/L2c), GLONASS(L1/L2), GALILEO(E1bc,E5b) and BEIDOU(B1i,B2i).
- Provided boat track accuracy to 2cm.
- Optional NTRIP or network RTK corrections directly through RSQ software.
- Uses Lithium-ion rechargeable batteries (type 18650), also conveniently used with the RS5 ADCP. RS5 RTK systems come standard with four batteries - two needed for operation, and two spares.
- Radio range of 250m, Rover-to-Base, line-of-sight.
RS5: PACKED WITH ALL THE FEATURES YOU EXPECT

As a member of SonTek’s RiverSurveyor® suite of instrumentation, the RS5 comes loaded with many of the advanced data collection capabilities, high-precision data quality, and flexible deployment options customers have grown used to over the years. The RS5 is no exception - take a look and compare for yourself!
- SmartPulse+, an intelligent algorithm utilizing Pulse-coherent and Broadband acoustic profiling that adjusts based on conditions
- 360º compass and two-axis tilt sensor
- Reliable bottom tracking and velocity profiling through a wide range of conditions and shallower than before
- Batteries and Bluetooth radio are housed in the RS5, which means there is no need to connect to external electronics boxes. Rely on an integrated, modern, high speed, and low power wireless Bluetooth Low Energy (BLE5) radio, with 100m range and a five-minute data buffer to prevent data loss and redundant work.
- Vertical acoustic beam for superior channel definition for the most accurate channel cross-sectional area, for discharge applications.
RSQ: VISUALIZE DISCHARGE DATA LIKE NEVER BEFORE

RSQ is a modern and user-friendly software interface. One measurement file includes all the data and metadata you need for each measurement. Export data to formats for Excel, Matlab, and Google Earth. Do more with less time utilizing improved site templates. Experiment, learn or teach in the office or conference room as though you were in the field with the “demo” mode to playback recorded files simulating live data collection. Flexibility is key with RS5!

NOW YOU CAN:
- Save Data on a PC, external drive, or network
- Customize File Naming
- Run and apply Extrap directly
- Sub-section transects
- Process *.riv / *.rivr files from RSL
- Choose three-beam switching when there is a vertical bank interface

Specifications

Specifications
Water Velocity Profiling
Profiling Range	0.1-6 m ^(*1)
Velocity Range	±5 m/s
Accuracy	1% ±0.002 m/s
Resolution	0.001 m/s
Number of Cells	Up to 128
Cell Size	2.5-30 cm
Data Output Rate	1.0 Hz
Bottom Tracking
Depth Range	0.1-6 m ^(*1)
Accuracy ^(*2)	1% ± 0.002 m/s
Resolution	0.001 m/s
Depth Measurement
Range	0.1-6.5 m ^(*1)
Accuracy	1% ±0.005 m
Sensors
Temperature Sensors	Resolution: ±0.01°C Accuracy: ±0.5°C
Compass/Tilt Sensor	Range: ±180° Pitch/Roll, 0-360° Heading Heading Accuracy: ±2° Pitch/Roll Accuracy: ±1°
Transducers
Total Number	Five, 3.0 Mhz
Beam Angle	25°
Beam Width	3°
Bandwidth	25%
Battery Characteristics
Input Voltage	3.3-4.2 VDC
Power Source - Li-Ion	1x size 18650, Tenergy, Type 30016-04, 3.7Vdc, 2600mAh
Battery Life - 1 x size 18650	Seven hours continuous use, typical settings ^(*3)
Power Consumption	1.0 W (Average)
Dimensions	19.2 mm x 69.7 mm
Communications
Radio Protocol	Bluetooth Low Energy (BLE5)
Range	100 m ^(*4)
Bluetooth Compliance	FCC Part 15, FCC ID: XPYNINAB30 ISED Certification: 8595A-NINAB30
Environmental
Operation Temperature	-5° to 45°C (23°F to 113°F)
Storage Temperature	20° to 70°C (-4°F to 158°F)
Storage with Battery Temperature ^(*5)	-20° to 45°C (-4°F to 113°F)
RS5 Physical Properties
Dimensions - HBII Micro	76 cm (30”) x 50 cm (20”) x 11cm (4.25”)
Dimensions - RS5 Unit	24 cm (9.5”) x 5 cm (2.2”)
Weight in Air - RS5 Unit	0.45 kg (1.0 lbs)
Weight in Water - RS5 Unit	0.15 kg (0.33 lbs)
Weight in Air - RS5/HBII Micro/Geode	3.63 kg (8.0 lbs)
Waterproof Rating	IP67
DGNSS
Horizontal RMS	SBAS (WAAS): <0.3 m (0.98 ft)
2DRMS	SBAS (WAAS): <0.6 m (1.96 ft)
Frequency	L1, Multi-GNSS

*Additional notes
¹ Maximum range will vary with environmental conditions.
² Bottom velocity accuracy.
³ Seven hours continuous use, typical settings.
⁴ When using provided SonTek USB radio with antenna.
⁵ Remove batteries from the RS5 if storage temperatures exceed the storage temperature of the Li-Ion battery.

Accessories

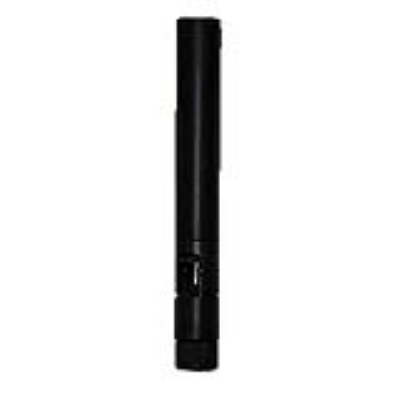

RS5 Antenna

2.4-GHz antenna (2 dBi)

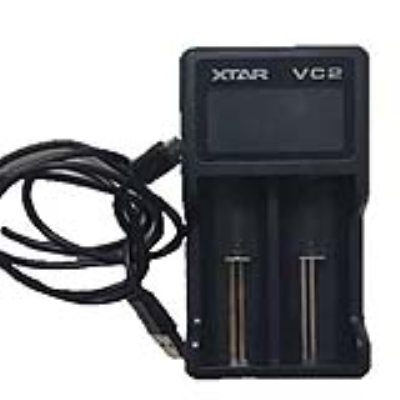

RS5 Battery Charger

Battery Charger

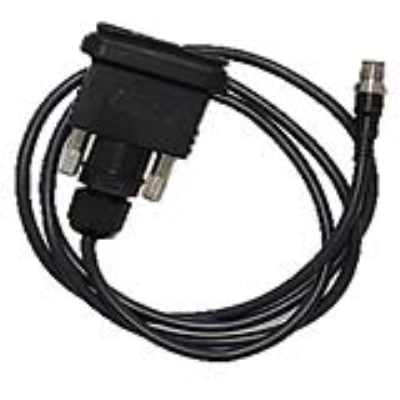

RS5 GNSS Antenna Interface Cable

Antenna Interface Cable

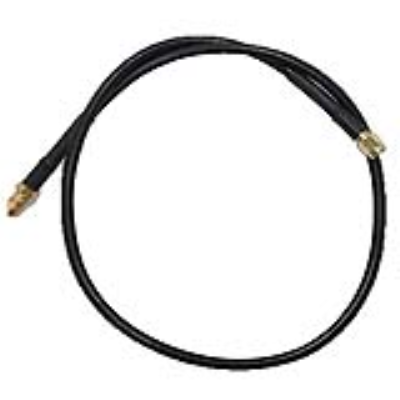

RS5 Radio Antenna Extension Cable

Extension Cable

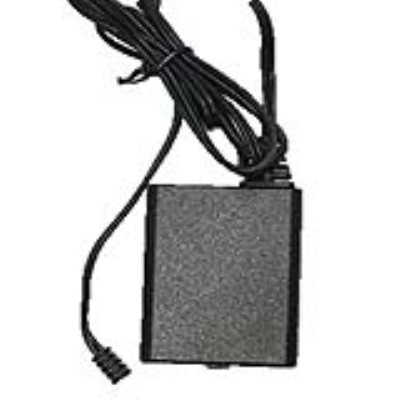

RS5 Power Supply

Power Supply

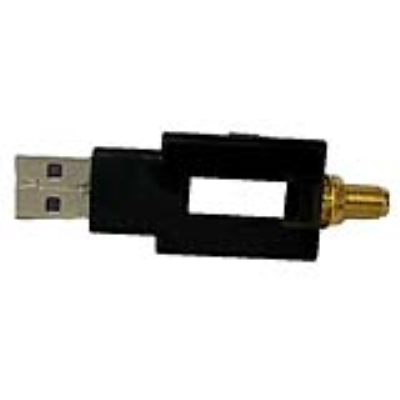

RS5 Bluetooth USB Radio

Bluetooth USB Radio

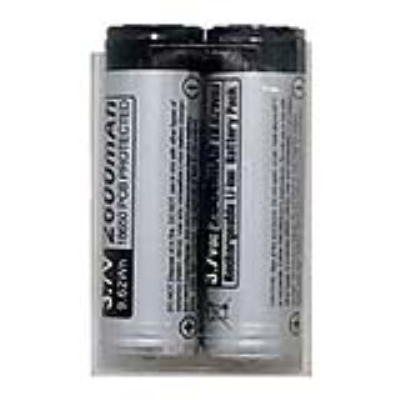

RS5 Rechargeable Battery
