IQ SensorNet ViSolid® Suspended Solids Probe

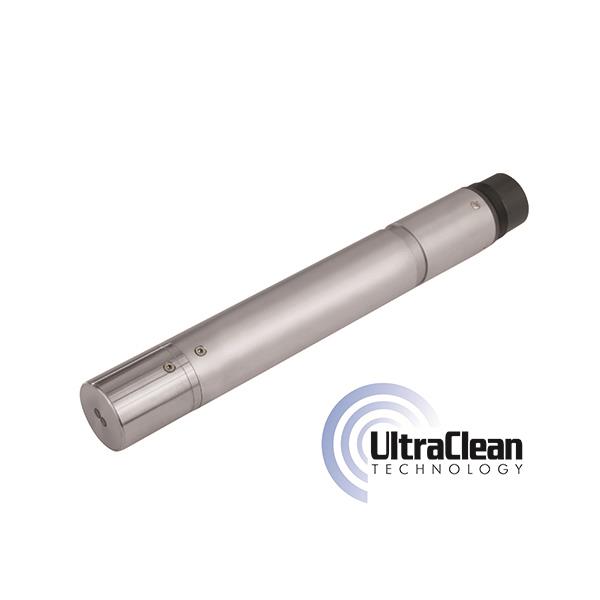

YSI IQ SensorNet Ultrasonic Sensor Cleaning with UltraClean Technology

See the ultrasonic cleaning on the IQ SensorNet sensors. Ultrasonic cleaning prevents biofouling on the optical sensor. This short video demonstrates the ultrasonic cleaning when power is added to this sensor and the green substance is quickly cleaned off. The UltraClean technology is continuously on and built into the sensor to prevent fouling.

PriceRequest Pricing

Option

SKU600 012Y

Request a Quote

Suspended Solids probe for IQ SensorNet systems

Overview

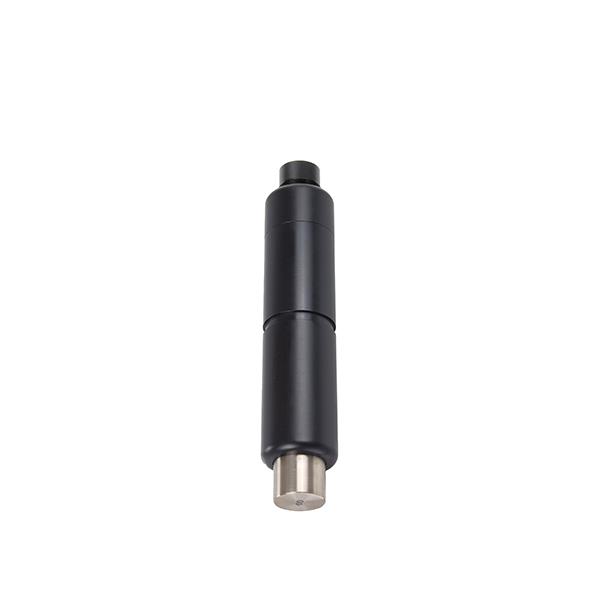

The ViSolid is a reflectance-based TSS (total suspended solids) probe for the IQ SensorNet process monitoring system.

The ViSolid comes with 2 factory calibrations for greatest versatility. Calibration matrix type 1 is designed for monitoring MLSS (mixed liquor suspended solids), return activated sludge (RAS), and waste activated sludge (WAS). Calibration matrix type 2 is used for monitoring primary sludge and thickened sludge. Two types of user calibrations (correction factor and value pair) are available for fine-tuning the factory calibration or monitoring TSS in other applications.

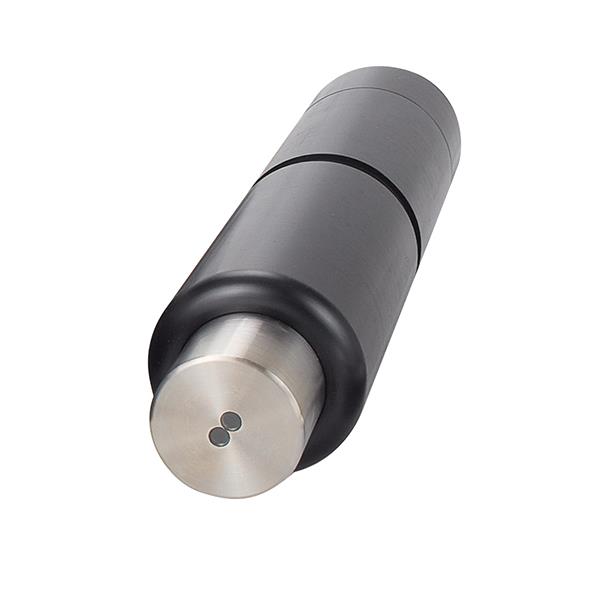

Smooth, durable sapphire measuring windows and continuous ultrasonic cleaning provide reliable and trouble-free service. The ViSolid is a good choice for process control of activated sludge wasting with an immersion mount for MLSS monitoring and an insertion mount to monitor RAS/WAS.
- Factory calibrated
- UltraClean™ maintenance free cleaning system provides integrated, continuous ultrasonic cleaning to prevent fouling for accurate measurements every time.
- Low ownership cost. No wipers or seals to replace.
- Measure in mg/L or %. Measuring range up to 40,000 mg/L
- 2-year probe warranty

Specifications

Anti Fouling	UltraClean™ ultrasound cleaning system
Certifications	UL 61010-1, CAN/CSA C22.2 # 61010.1
Depth / Pressure Rating / Limit	10 bar (145 psi)
Equipment used with	282/284 and 2020 XT
Integrated Lightning Protection	Yes
Languages	German, English
Measurement Method / Channels	a scattered light method is used, in case of higher concentrations, the backscatter method is implemented
Measurement Range	Concentration: 0 to 400 mg/L; 0 to 4000 mg/L; 0 to 25,000 mg/L; 0 to 40,000 mg/L Saturation: 0.0003 to 100%
Operating Temperature	32 – 140 °F (0 – 60 °C)
Parameters Measured	Total Suspended Solids
Precision	Repeatability according to DIN ISO 5725 or DIN 1319 <0.015% or > 0.0006 FNU
Sampling	Yes
Smart Sensors / Ports	Yes
Storage Temperature	23 – 149 °F (-5 – +65 °C)
Unit of Measure	g/l TSS / % TSS, g/l SiO2 / % SiO2
User Replaceable	Yes
Warranty	2 years
Waterproof	IP-68
