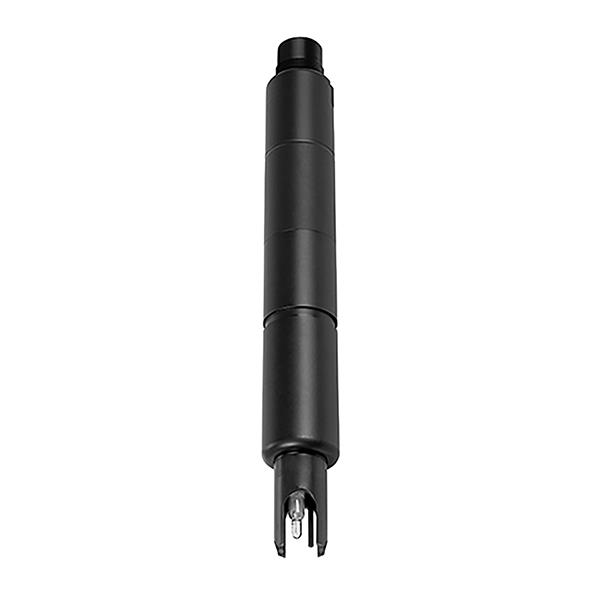

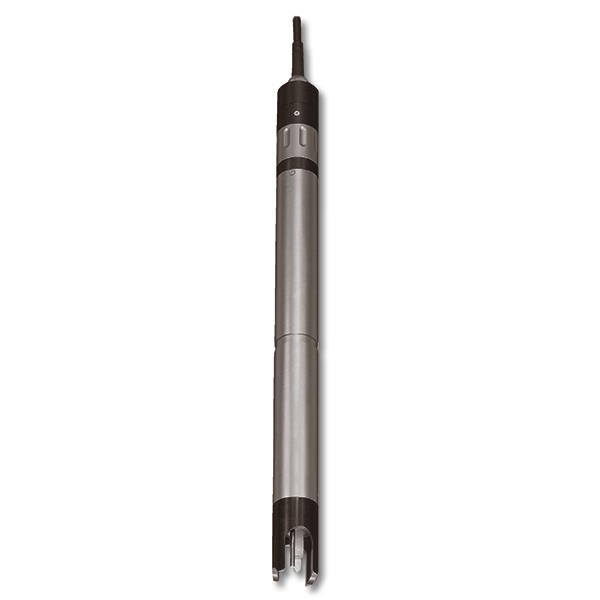

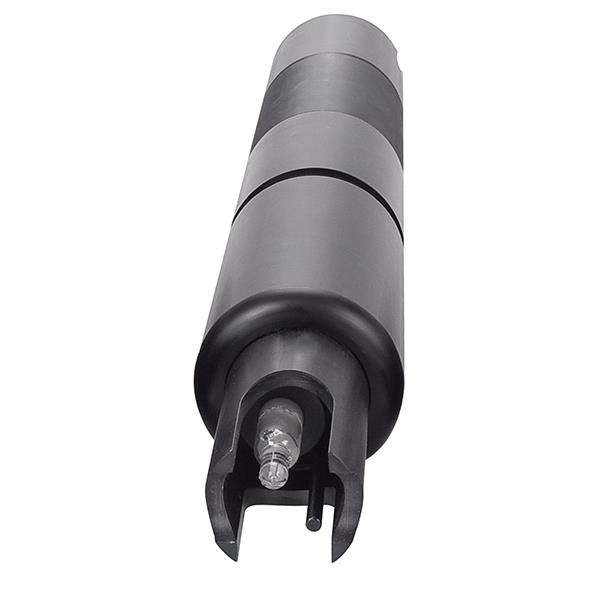

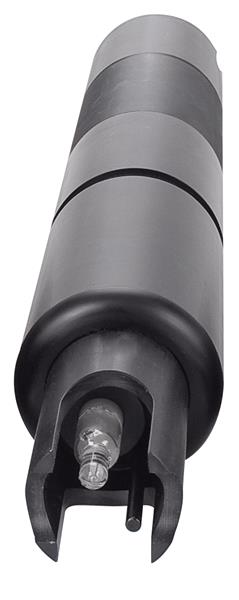

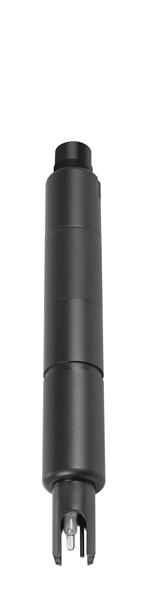

IQ SensorNet SensoLyt® 700 IQ Sensors

PriceRequest Pricing

Option

SKU109 171Y

Request a Quote

The SensoLyt provides continuous monitoring of pH or ORP for IQ SensorNet systems. This sensor uses a double junction electrode for the most accurate wastewater process monitoring.

Overview
The SensoLyt® is a rugged, online probe for the IQ SensorNet process monitoring system. The SensoLyt provides continuous and reagentless monitoring of pH or ORP using a combination electrode for the most accurate wastewater process monitoring. The digital probes can be calibrated in the lab for greatest convenience. The probe automatically recognizes YSI buffers for even greater convenience. Replaceable electrodes have a long lifetime, minimizing ownership costs.
- SensCheck function monitors glass membrane breakage
- Probe guard for electrode protection
- Easily replace electrodes without tools
- Pre-amplified signal
- Digital sensors store calibration. Calibrate in lab, take to the field
- Integrated NTC temperature sensor for temperature compensation of pH
- 2-year warranty on the probe. 6-months on the electrodes

Specifications

Antenna Mast	Peter Check
Depth / Pressure Rating / Limit	10 bar (106 Pa) CAUTION: The pressure resistance of the operable pH/ORP armature can be reduced by the pressure resistance of the combination electrode. When selecting the combination electrode make sure it is suitable for the intended pressure and temper
Equipment used with	282/284 and 2020 3G
Languages	English/ German
Measurement Method / Channels	Potentiometric measurement using a combination electrode, Integrated microprocessor electronics, shielded 2-wire connection for power and data transmission.
Measurement Range	pH: 0.00 to 14.00 (depending on the electrode) ORP: -2000 mV to +2000 mV (depending on the electrode)
Operating pH Range	4 to 12
Operating Temperature	32 to 104°F (0 to 40°C)
Parameters Measured	pH/ ORP
Sampling	Yes
Smart Sensors / Ports	Yes
Storage Temperature	23 to 149 °F (- 5 °C to + 65 °C)
Waterproof	Sensor with installed combination electrode and including SACIQ (SW) sensor connection cable is IP-68. Sensor plug head connector without sensor connection cable (sensor with installed combination electrode) is IP 67.

Accessories

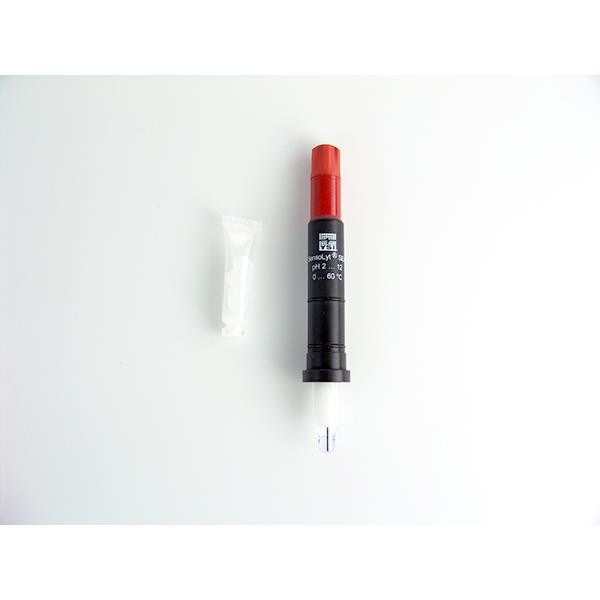

SensoLyt SEA pH Electrode

IQ SensorNet pH Electrode with Built in Reference for SensoLyt

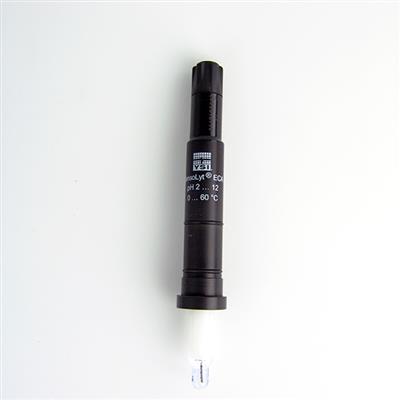

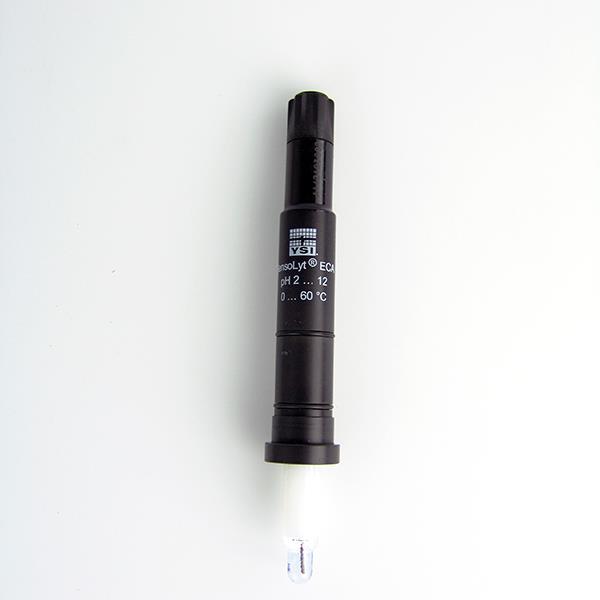

SensoLyt ECA pH Electrode

IQ SensorNet ECA pH Electrode for SensoLyt Probes

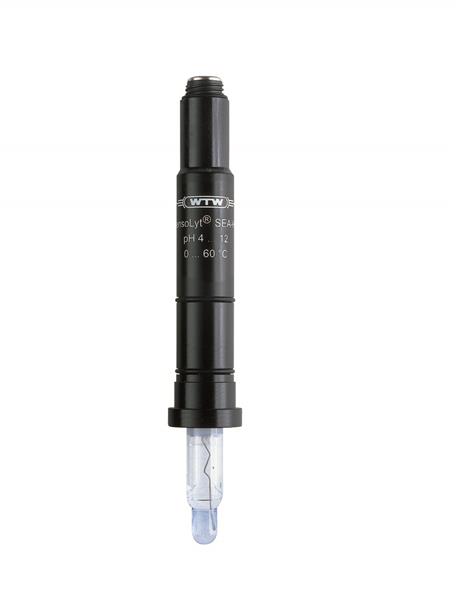

SensoLyt SEA-HP pH Electrode

pH Electrode with Built in Reference for High Pressure

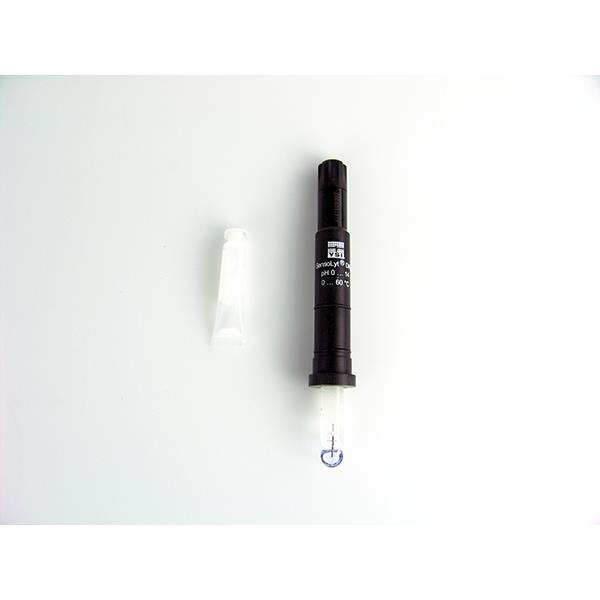

SensoLyt DWA pH Electrode

pH Electrode with Built in Reference for SensoLyt

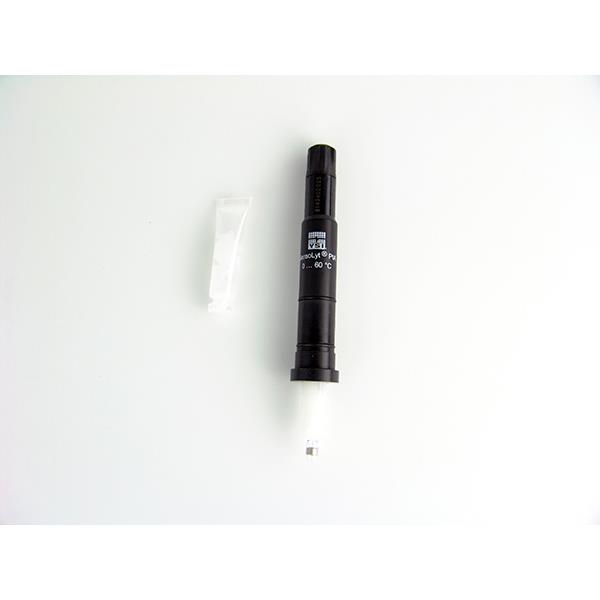

SensoLyt PtA pH Electrode

ORP Electrode with Built in Reference for SensoLyt
