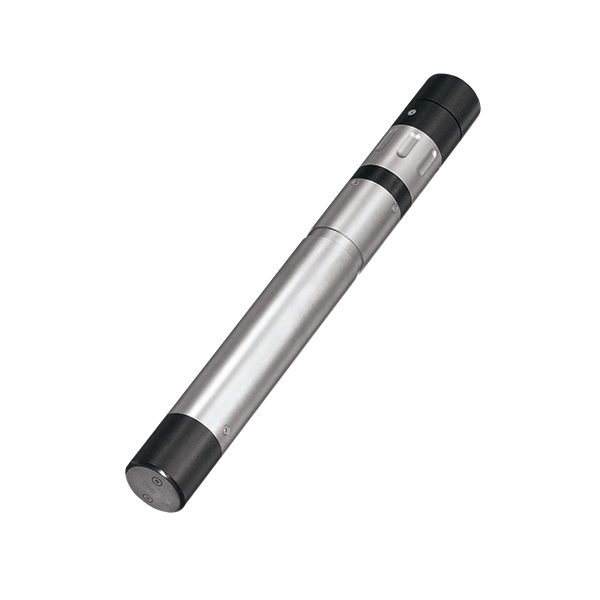

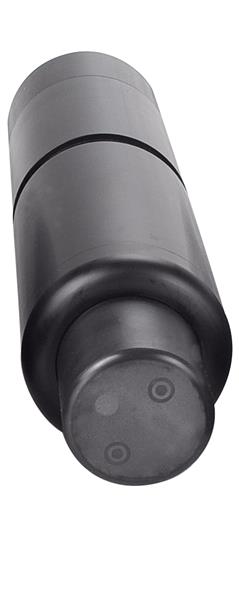

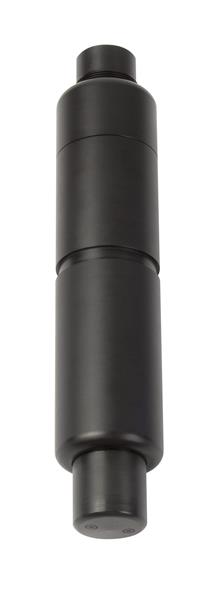

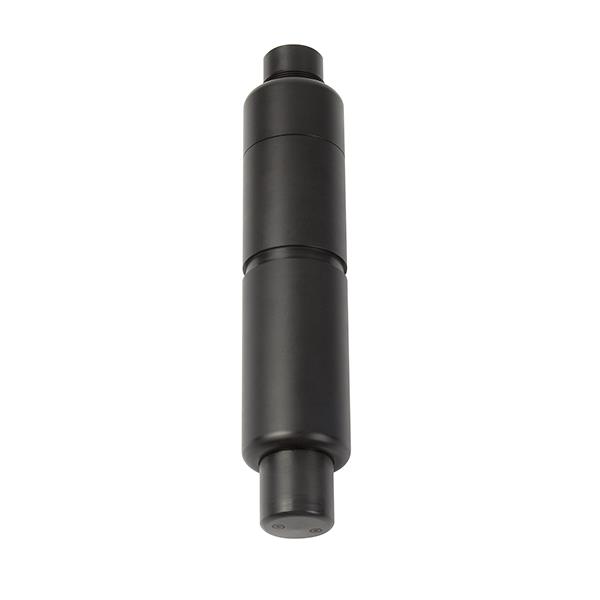

IQ SensorNet TetraCon® Sensors

Submersible Conductivity probe for IQ System, requires cable assembly

• Overview

  The TetraCon® is a rugged electrode-style conductivity probe for the IQ SensorNet process monitoring system. The TetraCon provides continuous and reagentless monitoring of conductivity, salinity, or total dissolved solids (TDS) using a 4-electrode measuring cell to eliminate polarization effects and reduce measurement error due to fouling.

  • Flat surface reduces fouling
  • Large measurement range; 10 µS/cm.....500 mS/cm
  • Integrated NTC temperature sensor for temperature compensation
  • 2-year warranty on the probe

• Specifications

  Certifications	ETL, cETL, CE
  Depth / Pressure Rating / Limit	10 bar (145 psi)
  Equipment used with	282/284 and 2020 3G
  Integrated Lightning Protection	Yes
  Languages	English/ German
  Measurement Method / Channels	Integrated microprocessor electronics, shielded 2-wire connection for power and data transmission; conductivity sensor with 4-electrode measuring cell
  Measurement Range	Conductivity: 0.00 to 20.00 µS/cm 0.0 to 200.0 µS/cm 0.000 to 2.000 mS/cm 0.00 to 20.00 mS/cm 0.0 to 200.0 mS/cm 0 to 500 mS/cm Salinity: 0 to 70 ppt TDS: 0 to 2000 mg/L
  Operating pH Range	4 to 12
  Operating Temperature	32 to 140°F (0 to 60°C)
  Parameters Measured	Conductivity, Salinity, TDS, Temperature
  Sampling	Yes
  Smart Sensors / Ports	Yes
  Storage Temperature	23 to 149 °F (- 5 to + 65 °C)
  Unit of Measure	µS/cm
  Warranty	2 years
  Waterproof	IP68
